Heimdall SBOM - Dynamic SBOM Generator Loader

Table of Contents

1. Overview
2. Installation
3. Quick Start
4. Commands Reference
5. Supported Formats
6. Plugin System
7. Examples
8. Advanced Usage
   • SBOM Signing
9. Troubleshooting
10. Integration

Overview

heimdall-sbom is a dynamic SBOM generator loader that provides a lightweight command-line interface for generating Software Bills of Materials from binary files using Heimdall plugins. It dynamically loads linker plugins and generates SBOMs in multiple formats without requiring the full Heimdall library to be linked.

Key Features

• Dynamic Plugin Loading: Loads Heimdall plugins at runtime using dlopen/dlsym
• Multi-format Support: SPDX (2.3, 3.0, 3.0.0, 3.0.1) and CycloneDX (1.4, 1.5, 1.6)
• Lightweight: Minimal dependencies, only requires the plugin shared library
• Flexible Configuration: Configurable output formats, versions, and dependency handling
• Cross-platform: Works on Linux and macOS with ELF and Mach-O binaries
• Batch Processing: Process multiple binaries with different configurations

Use Cases

• Standalone SBOM Generation: Generate SBOMs without full Heimdall installation
• CI/CD Integration: Lightweight SBOM generation in build pipelines
• Plugin Testing: Test Heimdall plugins independently
• Binary Analysis: Analyze existing binaries for SBOM generation
• Format Conversion: Convert between different SBOM formats

Installation

Prerequisites

• C++17 or later compiler
• CMake 3.15 or later
• Git
• Dynamic linking support (dlopen/dlsym)

Building from Source

# Clone the repository
git clone https://github.com/Heimdall-SBOM/heimdall.git
cd heimdall

# Build the project
mkdir build && cd build
cmake ..
make -j$(nproc)

# The heimdall-sbom tool will be available at:
# build/heimdall-sbom

Verifying Installation

./build/heimdall-sbom --help
# or
./build/heimdall-sbom

Quick Start

Basic SBOM Generation

# Generate CycloneDX SBOM from a binary
heimdall-sbom /path/to/heimdall-lld.so myapp --format cyclonedx --output myapp.cdx.json

# Generate SPDX SBOM from a binary
heimdall-sbom /path/to/heimdall-lld.so myapp --format spdx --output myapp.spdx

# Use default format (SPDX 2.3)
heimdall-sbom /path/to/heimdall-lld.so myapp --output myapp.sbom

Using Different Plugin Types

# Use LLD plugin
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp --format cyclonedx-1.6

# Use Gold plugin
heimdall-sbom /usr/lib/heimdall/heimdall-gold.so myapp --format spdx-3.0

Commands Reference

Basic Syntax

heimdall-sbom <plugin_path> <binary_path> [options]

Required Arguments

• <plugin_path> - Path to the Heimdall plugin shared library
• <binary_path> - Path to the binary file to analyze

Options

Format Options

• --format <format> - Specify SBOM format
  • SPDX formats: spdx, spdx-2.3, spdx-3.0, spdx-3.0.0, spdx-3.0.1
  • CycloneDX formats: cyclonedx, cyclonedx-1.4, cyclonedx-1.5, cyclonedx-1.6
  • Default: spdx-2.3

Output Options

• --output <path> - Output file path (default: sbom.json)
• --cyclonedx-version <version> - CycloneDX specification version (default: 1.6)
• --spdx-version <version> - SPDX specification version (default: 2.3)

Dependency Options

• --no-transitive-dependencies - Include only direct dependencies (default: include all transitive dependencies)

Ada Detection Options

• --ali-file-path <path> - Specify directory to search for Ada Library Information (.ali) files
  • Enables Ada detection and restricts search to the specified path only
  • Useful for large projects where scanning all directories would be slow
  • Example: --ali-file-path /path/to/ada/project

Signing Options

• --sign-key <path> - Path to private key file for SBOM signing (PEM format)
• --sign-cert <path> - Path to certificate file (optional, PEM format)
• --sign-algorithm <algorithm> - Signature algorithm (RS256, RS384, RS512, ES256, ES384, ES512, Ed25519, default: RS256)
• --sign-key-id <id> - Key identifier for signature metadata

Examples

# Basic usage with defaults
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp

# Specify format and output
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json

# SPDX with specific version
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format spdx-3.0 \
    --output myapp.spdx

# Only direct dependencies
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx \
    --no-transitive-dependencies \
    --output myapp-direct.cdx.json

# With Ada detection enabled for specific path
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --ali-file-path /path/to/ada/project \
    --output myapp-with-ada.cdx.json

Supported Formats

CycloneDX Support

Generated Fields:

• bomFormat, specVersion, version, metadata
• Component information (name, version, type, purl)
• Dependencies and relationships
• File hashes and integrity information
• License information
• Supplier and author details

SPDX Support

Generated Fields:

• SPDXVersion, DataLicense, DocumentName
• Package and file information
• License expressions and identifiers
• Checksums and integrity information
• Relationships between components
• Creator and creation information

Plugin System

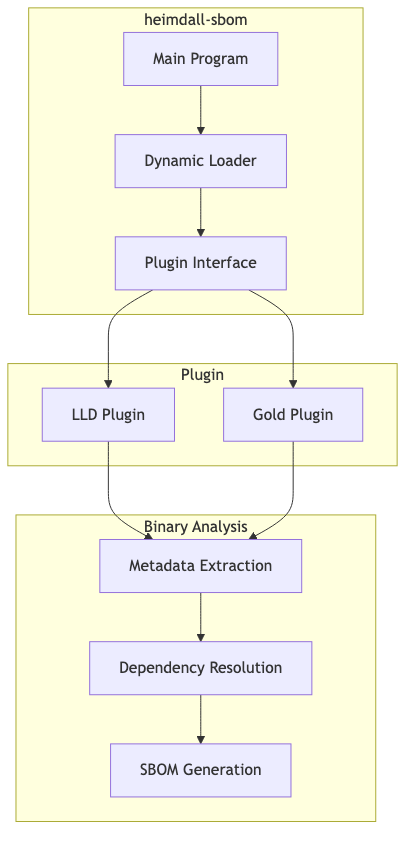

Plugin Architecture

heimdall-sbom uses dynamic loading to interface with Heimdall plugins:

Required Plugin Functions

The tool expects the following functions to be exported by the plugin:

// Plugin initialization
int onload(void* context);

// Format configuration
int heimdall_set_format(const char* format);
int heimdall_set_cyclonedx_version(const char* version);
int heimdall_set_spdx_version(const char* version);

// Output configuration
int heimdall_set_output_path(const char* path);
int heimdall_set_transitive_dependencies(int enabled);

// Processing
int heimdall_process_input_file(const char* path);

// Cleanup
void heimdall_finalize();

Plugin Loading Process

1. Library Loading: Uses dlopen() to load the plugin shared library
2. Symbol Resolution: Uses dlsym() to resolve required function symbols
3. Initialization: Calls onload() to initialize the plugin
4. Configuration: Sets format, version, and output parameters
5. Processing: Calls process_input_file() to analyze the binary
6. Finalization: Calls finalize() to generate the SBOM
7. Cleanup: Unloads the plugin library

Examples

Basic Examples

Generate CycloneDX 1.6 SBOM

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json

Expected Output:

Processing myapp with heimdall-lld.so...
SBOM generated successfully: myapp.cdx.json

Generate SPDX 3.0 JSON SBOM

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format spdx-3.0 \
    --output myapp.spdx.json

Generate SPDX 2.3 Tag-Value SBOM

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format spdx-2.3 \
    --output myapp.spdx

Advanced Examples

Process Multiple Binaries

#!/bin/bash
# process-binaries.sh

PLUGIN="/usr/lib/heimdall/heimdall-lld.so"
FORMAT="cyclonedx-1.6"

for binary in *.exe *.bin; do
    if [ -f "$binary" ]; then
        echo "Processing $binary..."
        heimdall-sbom "$PLUGIN" "$binary" \
            --format "$FORMAT" \
            --output "${binary%.*}.cdx.json"
    fi
done

Batch Processing with Different Formats

#!/bin/bash
# batch-sbom.sh

PLUGIN="/usr/lib/heimdall/heimdall-lld.so"
BINARY="myapp"

# Generate multiple formats
heimdall-sbom "$PLUGIN" "$BINARY" --format cyclonedx-1.6 --output "$BINARY.cdx.json"
heimdall-sbom "$PLUGIN" "$BINARY" --format spdx-3.0 --output "$BINARY.spdx.json"
heimdall-sbom "$PLUGIN" "$BINARY" --format spdx-2.3 --output "$BINARY.spdx"

echo "Generated SBOMs:"
ls -la "$BINARY".*

Compare Direct vs Transitive Dependencies

# Generate SBOM with all dependencies
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-all.cdx.json

# Generate SBOM with only direct dependencies
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --no-transitive-dependencies \
    --output myapp-direct.cdx.json

# Compare the results
diff myapp-all.cdx.json myapp-direct.cdx.json

Signing SBOMs

# Generate and sign a CycloneDX SBOM
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-signed.cdx.json \
    --sign-key private.key \
    --sign-algorithm RS256

# Sign with certificate and key ID
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-signed.cdx.json \
    --sign-key private.key \
    --sign-cert certificate.pem \
    --sign-algorithm ES256 \
    --sign-key-id "my-key-2025"

Advanced Usage

SBOM Signing

Heimdall supports signing SBOMs using the JSON Signature Format (JSF) for CycloneDX 1.6+ documents. This provides cryptographic integrity and authenticity verification for generated SBOMs.

Supported Signing Algorithms

The following cryptographic algorithms are supported:

RSA Signatures:

• RS256 - RSA with SHA-256 (default)
• RS384 - RSA with SHA-384
• RS512 - RSA with SHA-512

ECDSA Signatures:

• ES256 - ECDSA with SHA-256
• ES384 - ECDSA with SHA-384
• ES512 - ECDSA with SHA-512

Ed25519 Signatures:

• Ed25519 - Ed25519 signature (no separate digest)

Basic Signing

# Sign a CycloneDX SBOM with RSA
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json \
    --sign-key private.key \
    --sign-algorithm RS256

# Sign with ECDSA
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json \
    --sign-key ecdsa_private.key \
    --sign-algorithm ES256

# Sign with Ed25519
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json \
    --sign-key ed25519_private.key \
    --sign-algorithm Ed25519

Signing Options

• --sign-key <path> - Path to private key file (PEM format)
• --sign-cert <path> - Path to certificate file (optional, PEM format)
• --sign-algorithm <algorithm> - Signature algorithm (default: RS256)
• --sign-key-id <id> - Key identifier for signature metadata

Key Management

Generating RSA Keys:

# Generate RSA private key
openssl genrsa -out private.key 2048

# Generate RSA public key
openssl rsa -in private.key -pubout -out public.key

# Generate self-signed certificate
openssl req -new -x509 -key private.key -out certificate.pem -days 365

Generating ECDSA Keys:

# Generate ECDSA private key (P-256 curve)
openssl ecparam -genkey -name prime256v1 -out ecdsa_private.key

# Generate ECDSA public key
openssl ec -in ecdsa_private.key -pubout -out ecdsa_public.key

Generating Ed25519 Keys:

# Generate Ed25519 private key
openssl genpkey -algorithm ED25519 -out ed25519_private.key

# Generate Ed25519 public key
openssl pkey -in ed25519_private.key -pubout -out ed25519_public.key

Signature Structure

The signature follows the JSON Signature Format (JSF) specification:

{
  "signature": {
    "algorithm": "RS256",
    "value": "base64-encoded-signature",
    "keyId": "key-identifier",
    "excludes": ["signature", "components[0].signature"]
  }
}

Signature Fields:

• algorithm - The signature algorithm used (required)
• value - Base64-encoded signature value (required)
• keyId - Key identifier for verification (optional)
• excludes - Array of fields excluded during canonicalization (optional)

Canonicalization

Before signing, the SBOM content is canonicalized according to JSF standards:

1. Field Exclusion: All existing signature fields are removed from the SBOM
2. JSON Canonicalization: Content is serialized using RFC 8785 JSON Canonicalization Scheme
3. Excludes Tracking: Removed field paths are tracked in the excludes array

This ensures that:

• The signature covers only the actual SBOM content
• Existing signatures don't interfere with new signatures
• The canonicalization process is transparent and verifiable

Verification

Signed SBOMs can be verified using standard cryptographic tools:

# Extract the signature value
jq -r '.signature.value' myapp.cdx.json | base64 -d > signature.bin

# Extract the canonicalized content (excluding signature fields)
jq 'del(.signature)' myapp.cdx.json | jq -c . > content.json

# Verify with OpenSSL
openssl dgst -sha256 -verify public.key -signature signature.bin content.json

Advanced Signing Examples

Signing with Certificate:

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json \
    --sign-key private.key \
    --sign-cert certificate.pem \
    --sign-algorithm RS256 \
    --sign-key-id "my-key-2025"

Batch Signing Multiple SBOMs:

#!/bin/bash
# sign-sboms.sh

PLUGIN="/usr/lib/heimdall/heimdall-lld.so"
PRIVATE_KEY="private.key"
ALGORITHM="RS256"

for binary in *.exe *.bin; do
    if [ -f "$binary" ]; then
        echo "Signing SBOM for $binary..."
        heimdall-sbom "$PLUGIN" "$binary" \
            --format cyclonedx-1.6 \
            --output "${binary%.*}.cdx.json" \
            --sign-key "$PRIVATE_KEY" \
            --sign-algorithm "$ALGORITHM"
    fi
done

Signing with Different Algorithms:

# Generate multiple signed versions
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-rs256.cdx.json \
    --sign-key rsa_private.key \
    --sign-algorithm RS256

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-es256.cdx.json \
    --sign-key ecdsa_private.key \
    --sign-algorithm ES256

heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp-ed25519.cdx.json \
    --sign-key ed25519_private.key \
    --sign-algorithm Ed25519

Integration with CI/CD

GitHub Actions with SBOM Signing:

name: Build and Sign SBOM
on: [push, release]

jobs:
  build-and-sign:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3

      - name: Build Application
        run: g++ -o myapp main.cpp

      - name: Setup OpenSSL
        run: |
          openssl genrsa -out private.key 2048
          openssl rsa -in private.key -pubout -out public.key

      - name: Generate and Sign SBOM
        run: |
          ./heimdall/build/heimdall-sbom \
            ./heimdall/build/lib/heimdall-lld.so \
            myapp \
            --format cyclonedx-1.6 \
            --output myapp.cdx.json \
            --sign-key private.key \
            --sign-algorithm RS256

      - name: Upload Signed SBOM
        uses: actions/upload-artifact@v3
        with:
          name: signed-sbom
          path: |
            myapp.cdx.json
            public.key

Jenkins Pipeline with Signing:

pipeline {
    agent any

    environment {
        PRIVATE_KEY = credentials('sbom-signing-key')
    }

    stages {
        stage('Build') {
            steps {
                sh 'g++ -o myapp main.cpp'
            }
        }

        stage('Generate and Sign SBOM') {
            steps {
                sh '''
                    ./heimdall/build/heimdall-sbom \
                        ./heimdall/build/lib/heimdall-lld.so \
                        myapp \
                        --format cyclonedx-1.6 \
                        --output myapp.cdx.json \
                        --sign-key $PRIVATE_KEY \
                        --sign-algorithm RS256
                '''
            }
        }

        stage('Archive') {
            steps {
                archiveArtifacts artifacts: 'myapp.cdx.json'
            }
        }
    }
}

Security Considerations

1. Key Protection: Store private keys securely and never commit them to version control
2. Algorithm Selection: Use appropriate algorithms for your security requirements
   • RS256/ES256: Good general-purpose security
   • RS384/ES384: Higher security for sensitive applications
   • RS512/ES512: Maximum security for critical systems
   • Ed25519: Modern, efficient alternative
3. Certificate Validation: Use valid certificates from trusted Certificate Authorities
4. Key Rotation: Implement key rotation policies for long-term projects
5. Verification: Always verify signatures before trusting SBOM content

Troubleshooting Signing Issues

Common Signing Errors:

1. "Failed to load private key"

   # Check key file exists and is readable
   ls -la private.key
   chmod 600 private.key


2. "Unsupported signature algorithm"

   # Verify algorithm is supported
   heimdall-sbom --help | grep sign-algorithm


3. "Failed to create signature"

   # Check key format and OpenSSL compatibility
   openssl rsa -in private.key -check


4. "Invalid key type for algorithm"

   # Ensure key type matches algorithm
   # RSA key for RS256/RS384/RS512
   # EC key for ES256/ES384/ES512
   # Ed25519 key for Ed25519


Plugin Development

Creating a Custom Plugin

// my_plugin.cpp
#include <iostream>

extern "C" {
    int onload(void* context) {
        std::cout << "My plugin loaded successfully" << std::endl;
        return 0;
    }

    int heimdall_set_format(const char* format) {
        std::cout << "Setting format: " << format << std::endl;
        return 0;
    }

    int heimdall_set_output_path(const char* path) {
        std::cout << "Setting output path: " << path << std::endl;
        return 0;
    }

    int heimdall_process_input_file(const char* path) {
        std::cout << "Processing file: " << path << std::endl;
        // Your SBOM generation logic here
        return 0;
    }

    void heimdall_finalize() {
        std::cout << "Finalizing SBOM generation" << std::endl;
    }
}

Building the Plugin

# Compile the plugin
g++ -shared -fPIC my_plugin.cpp -o my_plugin.so

# Use with heimdall-sbom
heimdall-sbom ./my_plugin.so myapp --format cyclonedx --output myapp.cdx.json

Integration with Build Systems

CMake Integration

# CMakeLists.txt
find_package(Heimdall REQUIRED)

add_executable(myapp main.cpp)
target_link_libraries(myapp ${HEIMDALL_LIBRARIES})

# Custom target for SBOM generation
add_custom_target(sbom
    COMMAND heimdall-sbom
        ${HEIMDALL_PLUGIN_PATH}/heimdall-lld.so
        $<TARGET_FILE:myapp>
        --format cyclonedx-1.6
        --output ${CMAKE_BINARY_DIR}/myapp.cdx.json
    DEPENDS myapp
    COMMENT "Generating SBOM for myapp"
)

Makefile Integration

# Makefile
HEIMDALL_PLUGIN = /usr/lib/heimdall/heimdall-lld.so
SBOM_FORMAT = cyclonedx-1.6

myapp: main.cpp
    g++ -o myapp main.cpp

sbom: myapp
    heimdall-sbom $(HEIMDALL_PLUGIN) myapp \
        --format $(SBOM_FORMAT) \
        --output myapp.cdx.json

.PHONY: sbom

CI/CD Integration

GitHub Actions

name: Generate SBOM
on: [push, pull_request]

jobs:
  sbom:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3

      - name: Build Application
        run: |
          g++ -o myapp main.cpp

      - name: Install Heimdall
        run: |
          git clone https://github.com/Heimdall-SBOM/heimdall.git
          cd heimdall
          mkdir build && cd build
          cmake ..
          make -j$(nproc)

      - name: Generate SBOM
        run: |
          ./heimdall/build/heimdall-sbom \
            ./heimdall/build/lib/heimdall-lld.so \
            myapp \
            --format cyclonedx-1.6 \
            --output myapp.cdx.json

      - name: Upload SBOM
        uses: actions/upload-artifact@v3
        with:
          name: sbom
          path: myapp.cdx.json

Jenkins Pipeline

pipeline {
    agent any

    stages {
        stage('Build') {
            steps {
                sh 'g++ -o myapp main.cpp'
            }
        }

        stage('Generate SBOM') {
            steps {
                sh '''
                    git clone https://github.com/Heimdall-SBOM/heimdall.git
                    cd heimdall
                    mkdir build && cd build
                    cmake ..
                    make -j$(nproc)

                    ../../heimdall-sbom \
                        ./lib/heimdall-lld.so \
                        ../../myapp \
                        --format cyclonedx-1.6 \
                        --output ../../myapp.cdx.json
                '''
            }
        }

        stage('Archive SBOM') {
            steps {
                archiveArtifacts artifacts: 'myapp.cdx.json'
            }
        }
    }
}

Troubleshooting

Common Issues

1. "Failed to load plugin"

Cause: Plugin file doesn't exist or has incorrect permissions Solution: Check plugin path and permissions

ls -la /usr/lib/heimdall/heimdall-lld.so
chmod 755 /usr/lib/heimdall/heimdall-lld.so

2. "Failed to get function symbols"

Cause: Plugin doesn't export required functions Solution: Ensure plugin implements all required functions

nm -D /usr/lib/heimdall/heimdall-lld.so | grep heimdall

3. "Failed to initialize plugin"

Cause: Plugin initialization failed Solution: Check plugin logs and dependencies

# Check plugin dependencies
ldd /usr/lib/heimdall/heimdall-lld.so

4. "Failed to process binary"

Cause: Binary file doesn't exist or is not supported Solution: Verify binary path and format

file myapp
ls -la myapp

5. "Failed to load private key"

Cause: Private key file doesn't exist, has wrong permissions, or is corrupted Solution: Check key file and permissions

ls -la private.key
chmod 600 private.key
openssl rsa -in private.key -check

6. "Unsupported signature algorithm"

Cause: Algorithm not supported or key type doesn't match algorithm Solution: Use supported algorithm and matching key type

# Supported algorithms: RS256, RS384, RS512, ES256, ES384, ES512, Ed25519
# RSA key for RS256/RS384/RS512
# EC key for ES256/ES384/ES512
# Ed25519 key for Ed25519

Debug Mode

Enable verbose output for debugging:

# Set environment variable for verbose output
export HEIMDALL_VERBOSE=1
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp --format cyclonedx

Error Codes

Performance Tips

1. Use absolute paths for plugins and binaries to avoid path resolution issues
2. Pre-load plugins in long-running processes to avoid repeated loading overhead
3. Use appropriate formats for your use case (JSON for programmatic processing, tag-value for human reading)
4. Consider dependency scope - use --no-transitive-dependencies for faster processing when only direct dependencies are needed

Integration

With Other Tools

Integration with CycloneDX Tools

# Generate SBOM with heimdall-sbom
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format cyclonedx-1.6 \
    --output myapp.cdx.json

# Validate with cyclonedx-cli
cyclonedx-cli validate myapp.cdx.json

# Convert to other formats
cyclonedx-cli convert --input-format json --output-format xml myapp.cdx.json

Integration with SPDX Tools

# Generate SPDX SBOM
heimdall-sbom /usr/lib/heimdall/heimdall-lld.so myapp \
    --format spdx-3.0 \
    --output myapp.spdx.json

# Validate with SPDX tools
spdx-tools-validate myapp.spdx.json

API Integration

The tool can be integrated into custom scripts and applications:

import subprocess
import json

def generate_sbom(plugin_path, binary_path, format='cyclonedx-1.6', output_path='sbom.json'):
    cmd = [
        'heimdall-sbom',
        plugin_path,
        binary_path,
        '--format', format,
        '--output', output_path
    ]

    result = subprocess.run(cmd, capture_output=True, text=True)
    return result.returncode == 0, result.stdout, result.stderr

# Usage
success, output, errors = generate_sbom(
    '/usr/lib/heimdall/heimdall-lld.so',
    'myapp',
    'cyclonedx-1.6',
    'myapp.cdx.json'
)

if success:
    print("SBOM generated successfully")
else:
    print(f"Error: {errors}")

Configuration Files

Create configuration files for repeated operations:

{
  "defaults": {
    "plugin_path": "/usr/lib/heimdall/heimdall-lld.so",
    "format": "cyclonedx-1.6",
    "include_transitive": true
  },
  "formats": {
    "cyclonedx": {
      "versions": ["1.4", "1.5", "1.6"],
      "default": "1.6"
    },
    "spdx": {
      "versions": ["2.3", "3.0", "3.0.0", "3.0.1"],
      "default": "2.3"
    }
  },
  "output": {
    "directory": "./sboms",
    "naming": "{binary}.{format}.{version}.json"
  }
}

Shell Scripts

Automated SBOM Generation Script

#!/bin/bash
# generate-sboms.sh

PLUGIN_PATH="${HEIMDALL_PLUGIN:-/usr/lib/heimdall/heimdall-lld.so}"
OUTPUT_DIR="${SBOM_OUTPUT_DIR:-./sboms}"
FORMATS=("cyclonedx-1.6" "spdx-3.0" "spdx-2.3")

if [ $# -eq 0 ]; then
    echo "Usage: $0 <binary1> [binary2] ..."
    exit 1
fi

mkdir -p "$OUTPUT_DIR"

for binary in "$@"; do
    if [ ! -f "$binary" ]; then
        echo "Warning: $binary not found, skipping"
        continue
    fi

    echo "Processing $binary..."

    for format in "${FORMATS[@]}"; do
        output_file="$OUTPUT_DIR/$(basename "$binary").${format//-/.}.json"

        echo "  Generating $format SBOM..."
        if heimdall-sbom "$PLUGIN_PATH" "$binary" \
            --format "$format" \
            --output "$output_file"; then
            echo "    ✅ Generated: $output_file"
        else
            echo "    ❌ Failed to generate: $output_file"
        fi
    done
done

echo "SBOM generation complete. Files saved to: $OUTPUT_DIR"

Conclusion

heimdall-sbom provides a lightweight, flexible interface for generating SBOMs from binary files using Heimdall plugins. Its dynamic loading approach makes it ideal for integration into existing toolchains and CI/CD pipelines without requiring full Heimdall installation.

For more information, see:

• Heimdall User Guide
• Heimdall Validate Manual
• Plugin Development Guide
• CycloneDX Specification
